QORVO · Qorvo Radar PA / Driver
TGA2307

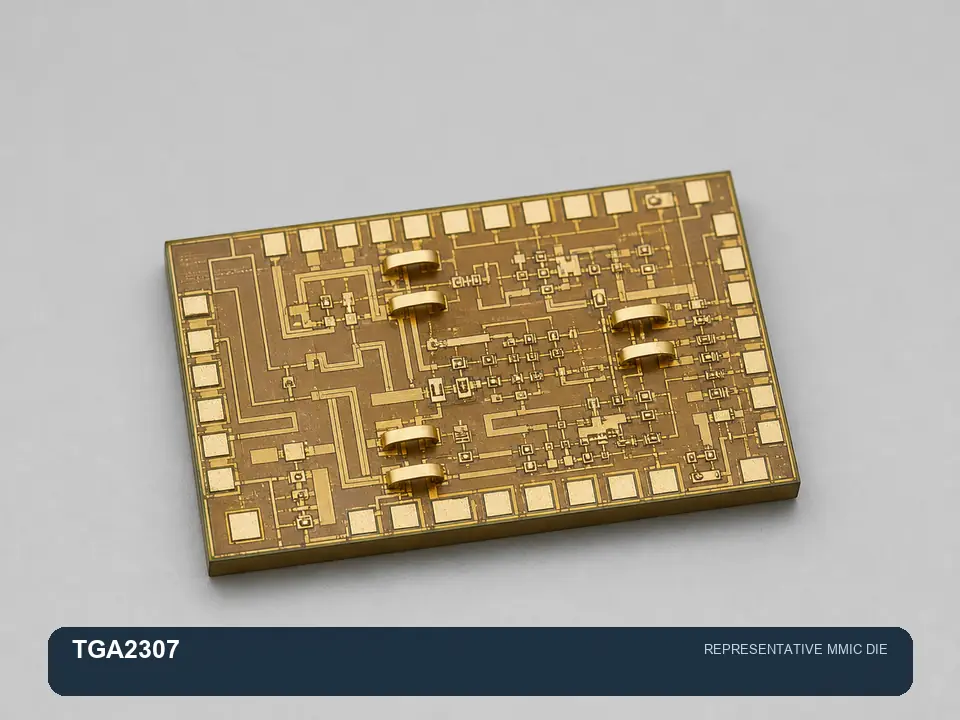

TGA2307 is a Qorvo 50 w c-band gan power amplifier die. This sourcing page separates Qorvo-listed applications from UAV engineering considerations and requires package and date-code confirmation by RFQ.
Official status: Production
Availability on request
Key Specifications
| Function | 50 W C-band GaN power amplifier die |
|---|---|
| Frequency | 5.0 GHz |
| Frequency max | 6.0 GHz |
| Output power | >47 dBm |
| Gain | >26 dB |
| Noise figure | unknown |
| PAE | >40% |
| Voltage | 28 V |
| Package | Die |
| Dimensions | 4.280 x 4.260 x 0.100 mm |
Application Fit & Evidence
Bare MMIC die; official C-band radar application.
application_evidence: official_product_page
Get Price & Quote
Technical Resources
Sourcing & Compliance
Availability, revision, package, marking, export classification and alternatives must be reconfirmed before order.
Export classification is subject to current manufacturer documentation and destination-specific compliance review.
ITAR: No · ECCN: unknown
Related Qorvo Models
FAQ
Can availability be confirmed?
Yes. Submit the quantity, package and required date code by RFQ.
